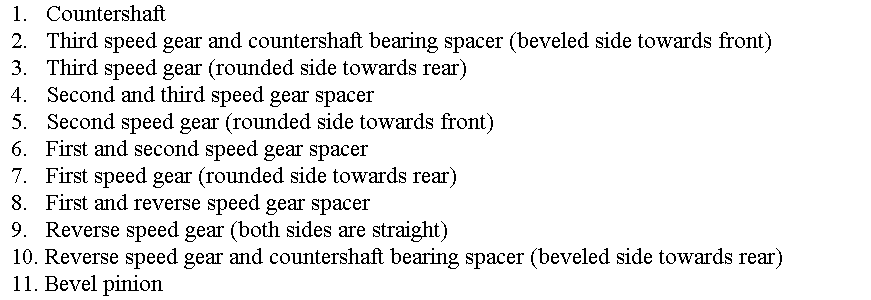

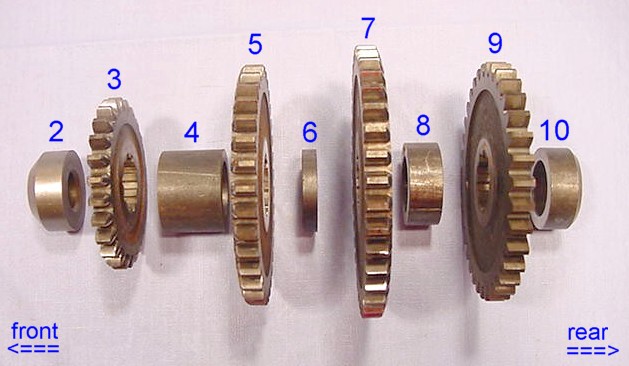

"Transmission gear locations"
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

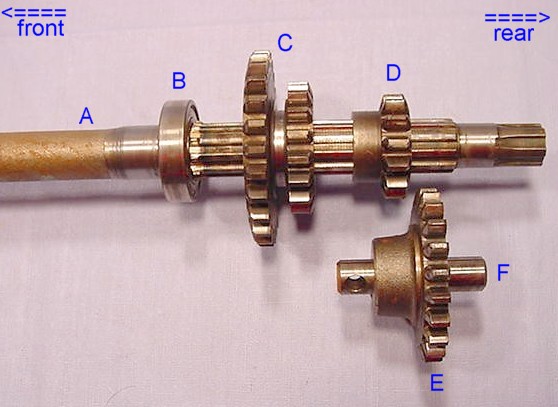

- Transmission spline and clutch shaft
- Bearing with lock ring
- Second and third speed sliding gear
- First and reverse speed sliding gear
- Reverse idler gear (rounded side towards front)
- Reverse idler gear shaft
Note: The reverse side of the first and reverse speed sliding gear engages into the reverse idler gear, not into the reverse speed gear.
|
