Stock# FL373
Price: $ 19.25
each
In stock


Quantity:

Item description: replacement fuel line underslung exhaust, new, seamless steel tubing with coating to prevent rust, ruddy color, made in the U.S.A., replaces 369992R11, includes two (2) Case IH fitting nuts our stock# FL512.  Fuel line has a little extra length on the carburetor end.  It is designed for you to cut to fit.

 For use with:

  • Cub and Cub Lo-Boy with underslung exhaust system
  • Cub and Cub Lo-Boy with original Case IH 3/4 updraft carburetor and with short or long style oil level gauge
  • Cub and Cub Lo-Boy with or without touch control (hydraulics)
  • Cub and Cub Lo-Boy with front rockshafts with or without helper spring arm

Will not fit Cub and Cub Lo-Boy with zenith carburetor.

Note: modification of tube length and angles may be required with the use of aftermarket parts.

Installation note: for those not familiar with this type of fitting nut with ferrule,  once the tube is inserted through the fitting nut and into the strainer/carburetor, when tightened, the ferrule is designed to lock into place.  It is a compression type fitting that will compress during installation.  It should not be manually separated ahead of time.

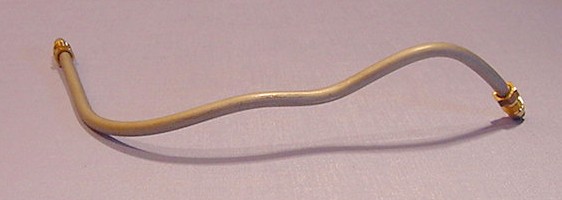

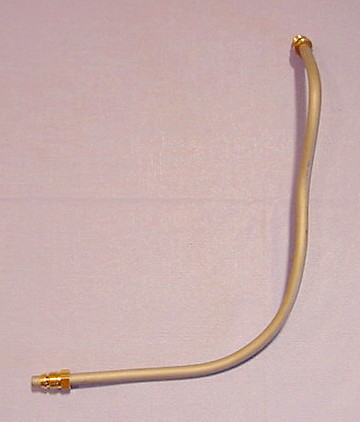

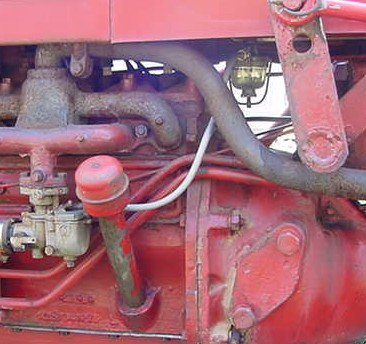

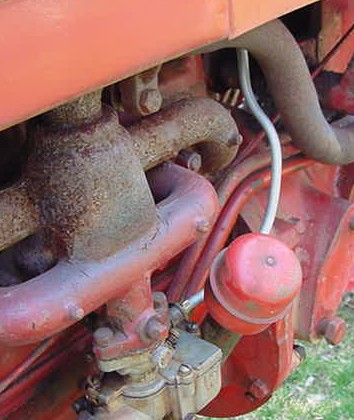

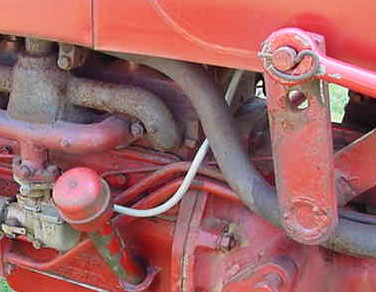

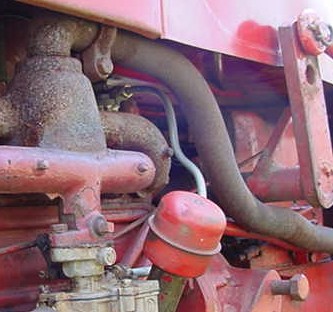

Fuel line in pictures below is previous lot of gray-colored tubing.  Current lot is ruddy-colored steel tubing.
