Stock# HY012
Price: $ 48.50
each


Quantity:

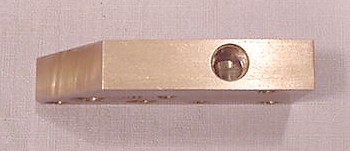

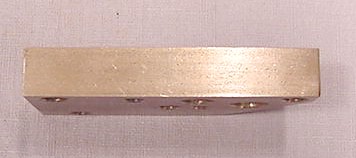

Item description: replacement hydraulic by-pass block, new, made in the U.S.A., replaces 469771R1, fitting thread size 1/4-18 NPT.
Includes:
three (3) grade 5 bolts with lock washers specific to the Cub tractor
two (2) gasket specific to the Cub tractor (for manifold tubes)

This original style hydraulic by-pass block is for use with the International 1000 loader when installed on the offset series Farmall / International Cub or International Cub Lo-Boy. Other applications can apply.
THIS PART CAN SHIP IN A SMALL FLAT RATE BOX. SHIPPING MAY BE HIGH WHEN CHECKING OUT. WE WILL REFUND THE DIFFERENCE

For use with:
McCormick Farmall Cub 1947 - 1964
International Cub 1964 - 1979
International Cub Lo-Boy 1955 - 1968
International 100,130,140


Not for use with:
International Cub 154 Lo-Boy, 1968 - 1974
International Cub 185 Lo-Boy, 1974 - 1976
International 184 Lo-Boy, 1977 - 1980

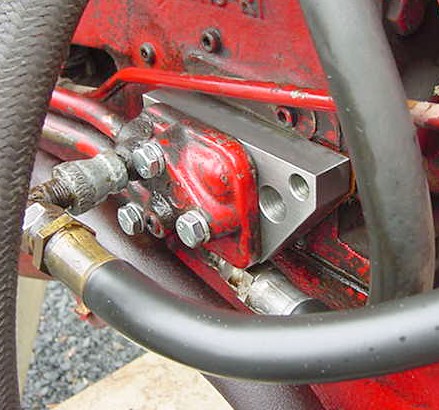

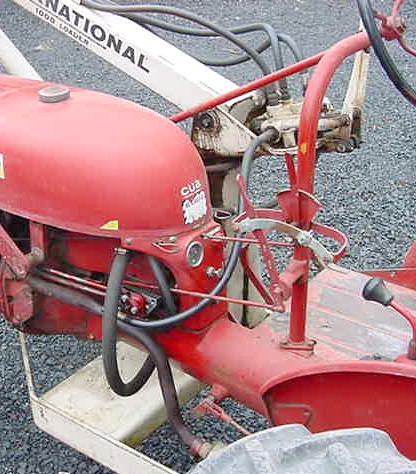

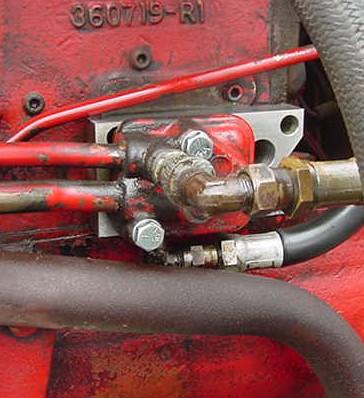

Shown below is the replacement hydraulic by-pass block on a Cub tractor with the International 1000 loader installed.

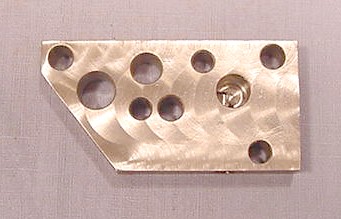

There are multiple mounting holes in the by-pass block, as the IH 1000 loader can also be used with the Farmall / International 140 (see pictures at bottom of this page). The by-pass block can also be used on tractors with similar hydraulic systems. You will have to supply your own gaskets and bolts for this application
